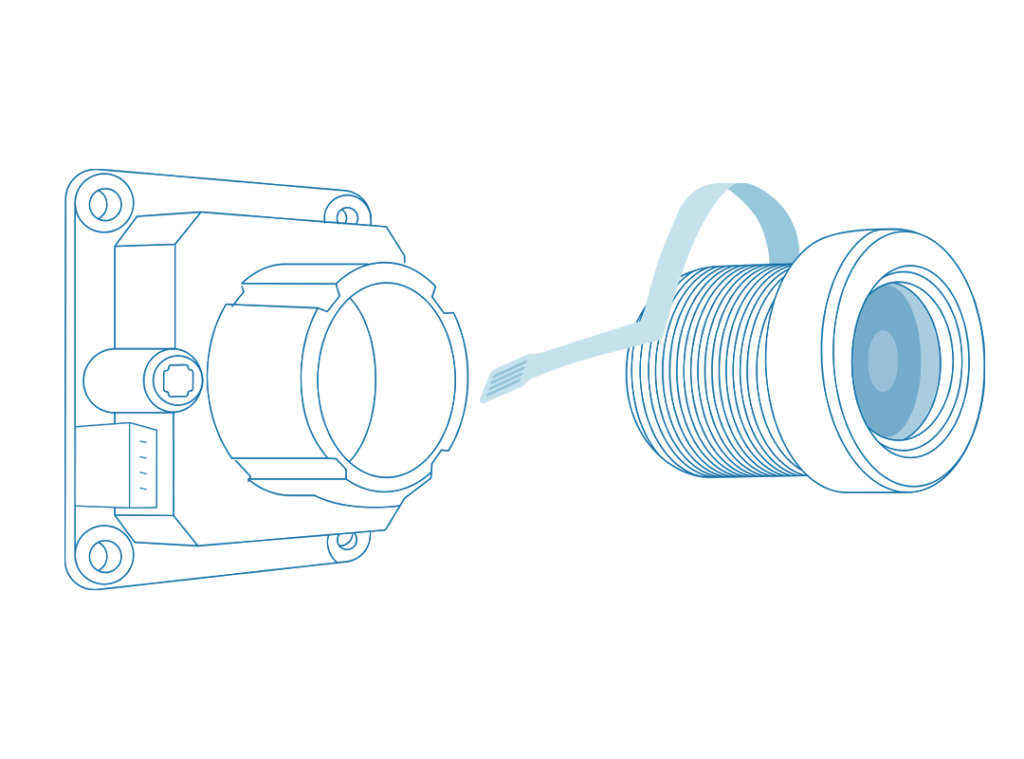

poLight MLens® products are a family of tunable focus objective lenses designed to enable variable focus functionality in a standard M12/S-Mount form factor. Based on our ultra-fast, ultra-low power consuming TLens® tunable optics technology, these new lenses enable design engineers to rapidly set and change object/focal distances to accommodate different scenarios.
Each lens is self contained, incorporating advanced drive and control electronics and temperature sensing with a common FPC connector format and pinout across all devices to enable simple evaluation, selection and swapping of lenses. Each lens requires only power supply and i2c communication from the host platform to enable focus tuning.
MLens® Portfolio
The MLens portfolio will support various image sensors in several focal lengths. Current focal lengths include:
6mm – available in Q1, 2026
7.5mm – available in Q1, 2026
13mm – available 1H, 2026
19mm – available1H, 2026
Contact info@polight.com to order.

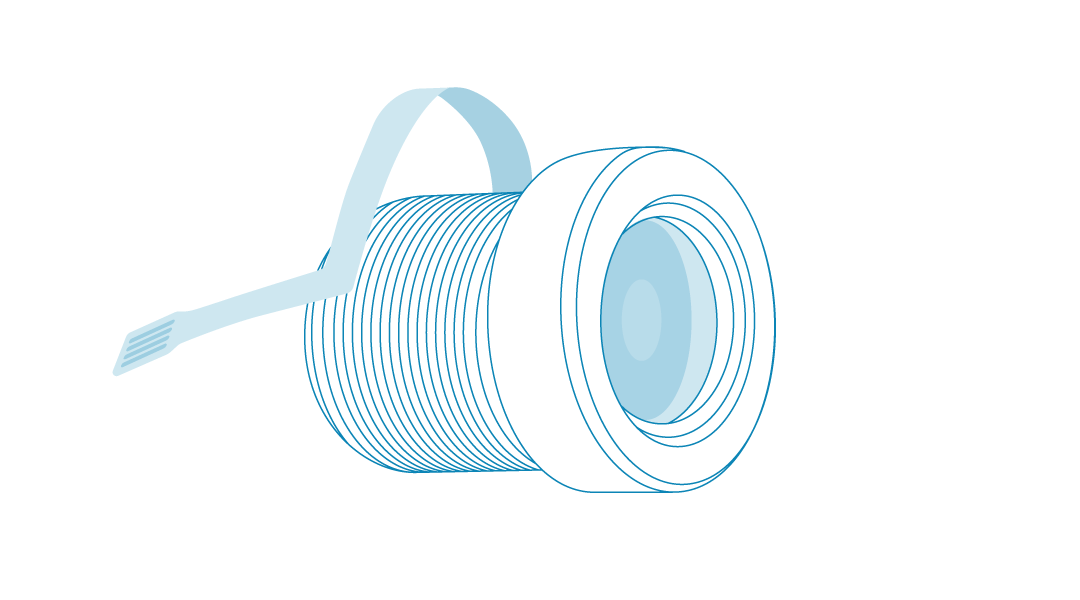

MLens® OTS – Focusing Camera Lens

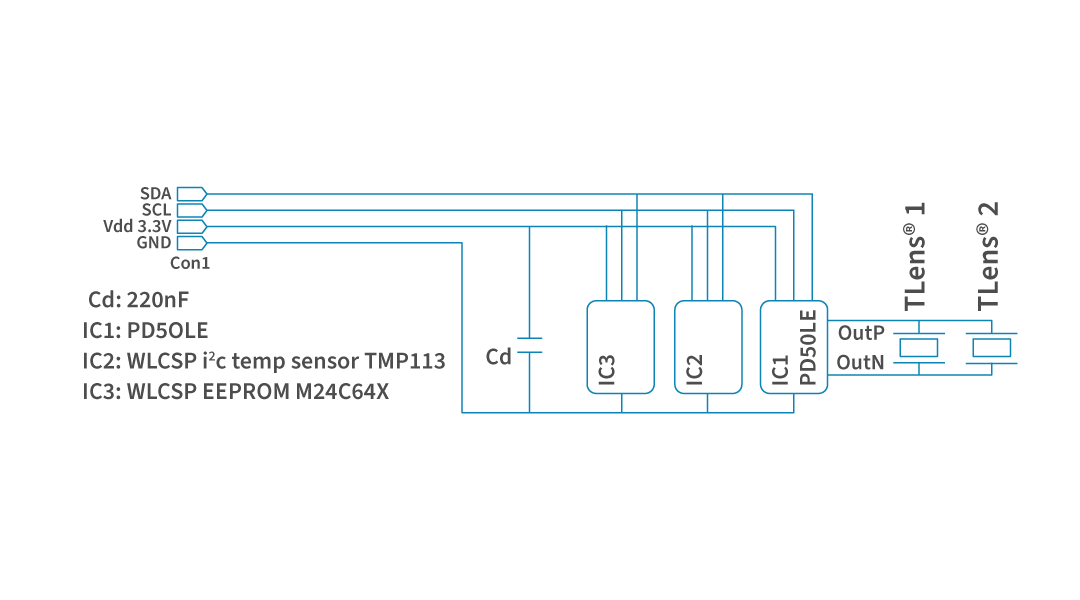

MLens® Circuit
MLens®
MLens® Evaluation Resources
poLight offers an evaluation kit enabling easy control of the lens via a USB connection to a PC or Mac computer.
MLens® Ecosystem
poLight is leading an ecosystem of collaborators to accelerate design development and evaluation of standard OTS constant field-of-view focusing solutions. Each company brings their unique capabilities while collectively meeting the growing AI-driven imaging requirements in automated manufacturing settings.
Sunex, Inc.
Manufactures MLens®
modules
Image Quality Labs

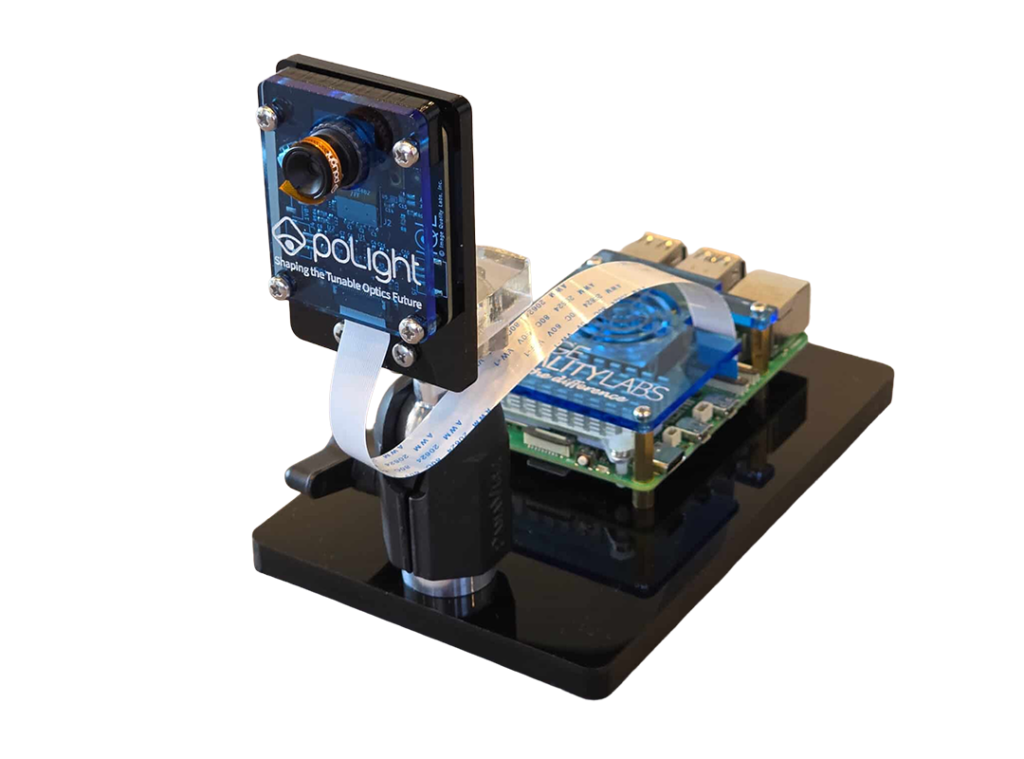

Raspberry Pi MLens® Studio platform provides a plug-and-play evaluation kit to evaluate MLens® behavior in various scenarios in minutes.
